Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32" [02478]

Save $38.11 Save $38.11
Original price $254.10
Original price $254.10 - Original price $254.10
Original price $254.10
Current price $215.99
$215.99 - $215.99
Current price $215.99

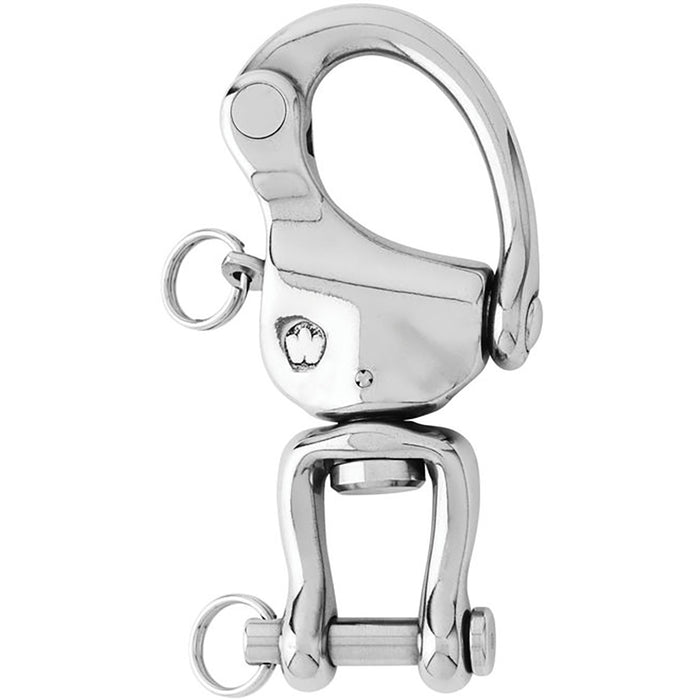

HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 15430 / (kg) 7000
  • Weight: (lb) 0.919 / (g) 417

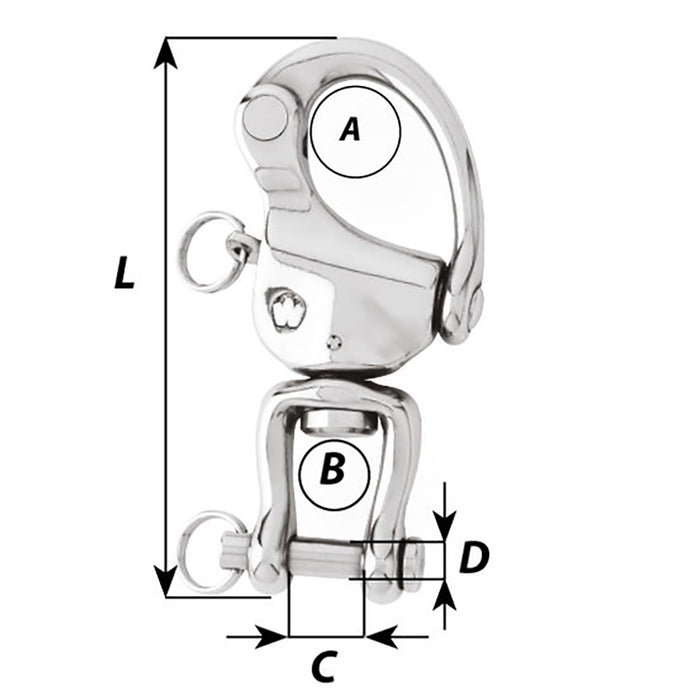

Dimensions:

  • A: (inch) 1 1/32" / (mm) 26
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 45/64" / (mm) 18
  • D diameter: (inch) 7/16" / (mm) 11
  • Length: (inch) 4 23/32" / (mm) 120

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
