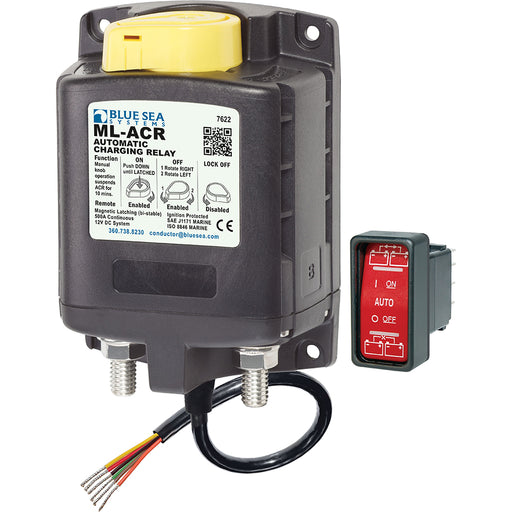

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay [7622]

Save $103.85 Save $103.85
Original price $332.84
Original price $332.84 - Original price $332.84
Original price $332.84
Current price $228.99
$228.99 - $228.99
Current price $228.99

7622

Manual Control: Yes
Coil Voltage: 12v

Features:

  • Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
  • Includes ML-Series Remote Control Contura Switch PN 2146
  • 500 Ampere continuous rating
  • Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • Supports high-output alternators up to 500 Amps
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit protection
  • Silver alloy contacts provide high reliability for switching live loads

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Owner's Manual (pdf)
